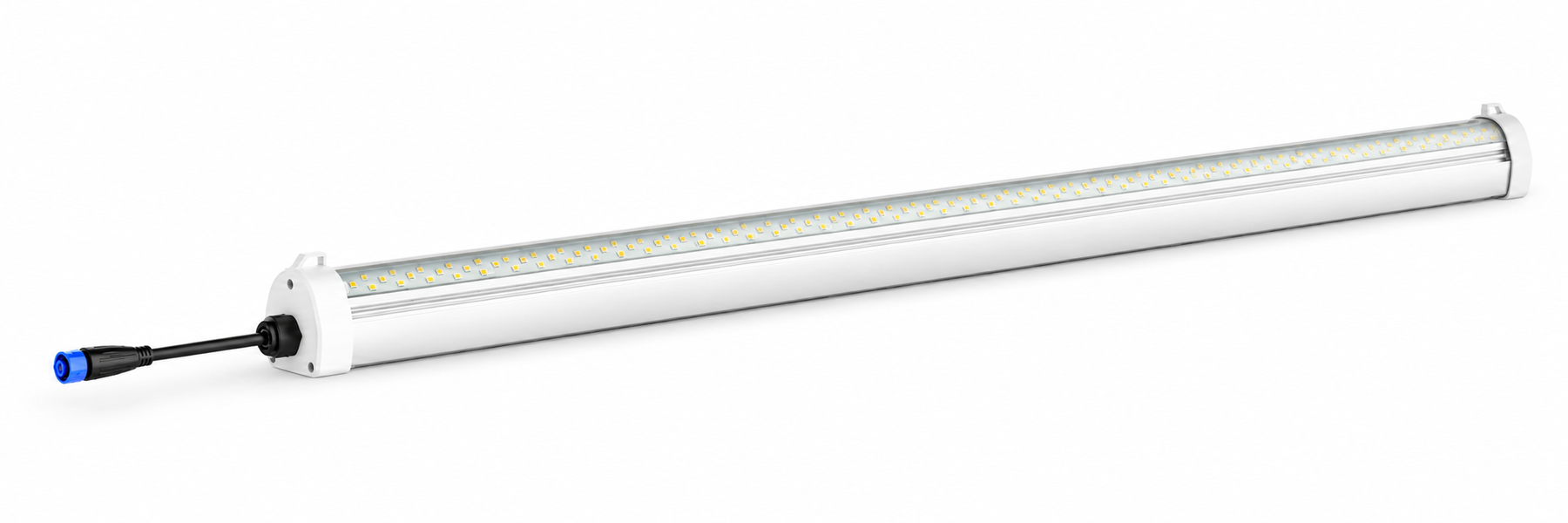

NEW P57 Under Canopy LED 120W
Turn those lowers into larger A-buds with our new P57 UCL lights.

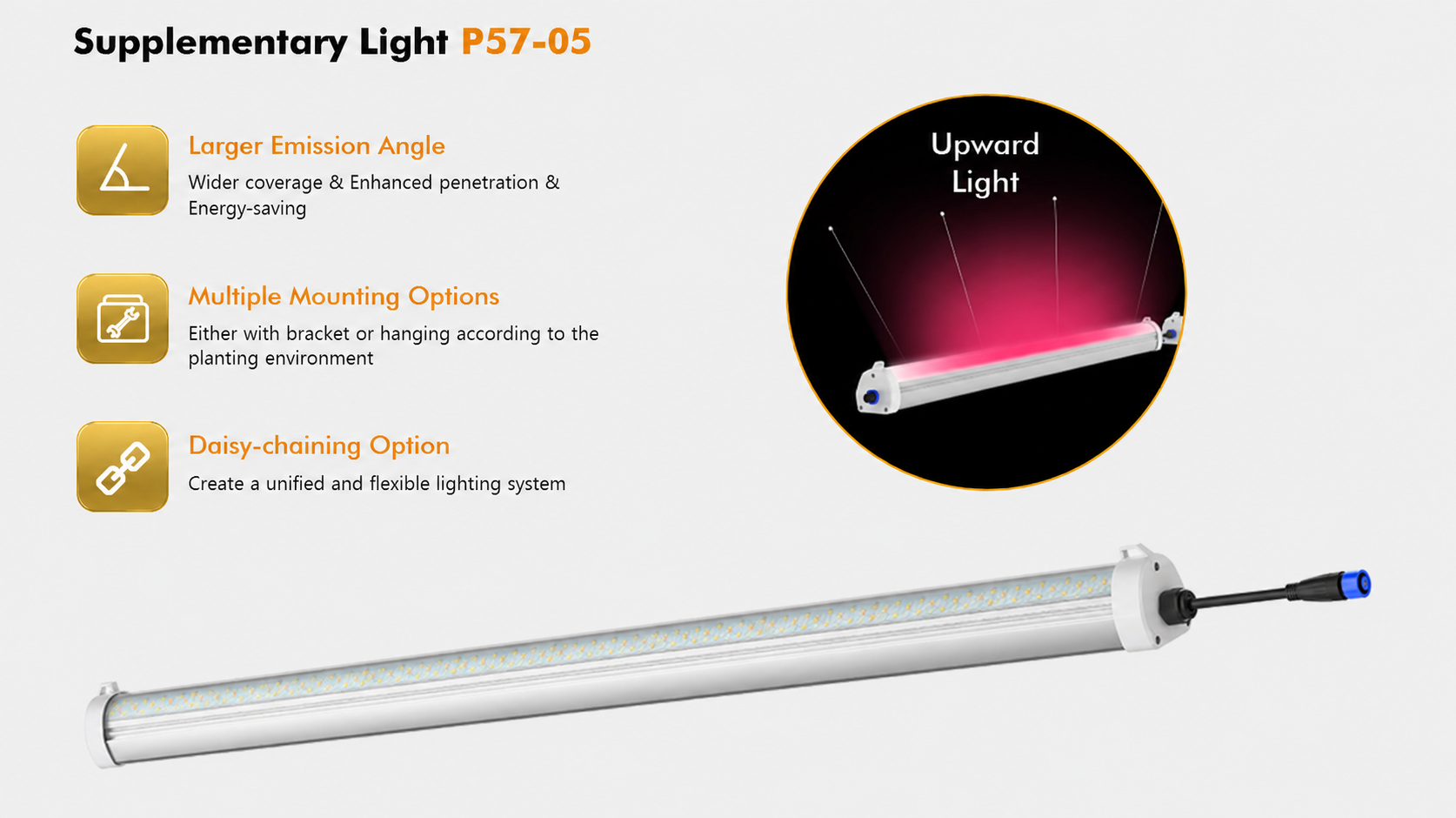

Key Features
-
0-10V Dimmable: The light is dimmable via a 0-10V connection, with various series connection options depending on the voltage
- Larger Beam Angle: Covers more leaf area
-
Spectrum GP1: The document includes a graph illustrating the light spectrum.
- Daisy Chain: Connect up to 16 lights on one power drop (voltage dependent)
-
Installation: The light can be installed by hanging or with brackets (Bracket 1 and Bracket 2 are detailed with dimensions).
Specifications (P57-120W-01):
-
Power Factor: >0.95
-
Voltage: AC120-277V 50/60Hz or AC120-347V 50/60Hz
-
Beam Angle: 120°
-
Wattage: 120W
-
PPF (Light output ±5%): 312 µmol/s
-
PPE: 2.6 µmol/J
-
Dimming Port: RJ12
-
Dimensions: 1330mm x 61mm x 73mm
-
Thermal Management: Passive Cooling
-
Dimming Control: 0-10V
-
Certifications: DLC/ETL/CE/RoHS
-
Waterproof Rating: Wet location / IP65
-
Ambient Temperature: 14~104°F (-10~40°C)
-
Warranty: 5 Years
-
Patent: U.S. Patent Application No. 18/966,315
